Intel

X18-M/X25-M SATA SSD

Intel

X18-M/X25-M SATA Solid State Drive

Advance Product Manual July 2008

12 Order Number: 319765-002US

Intel

X18-M/X25-M SATA SSD

Notes:

1. Connector Outline: The 1.8” Intel X18-M SATA SSD connector is compliant to the SATA Rev 2.6 specifications.

2. Connector Location: The 1.8” Intel X18-M SATA SSD connector is compliant to the micro SATA SFF-8144 specification.

3. All dimensions are in millimeters.

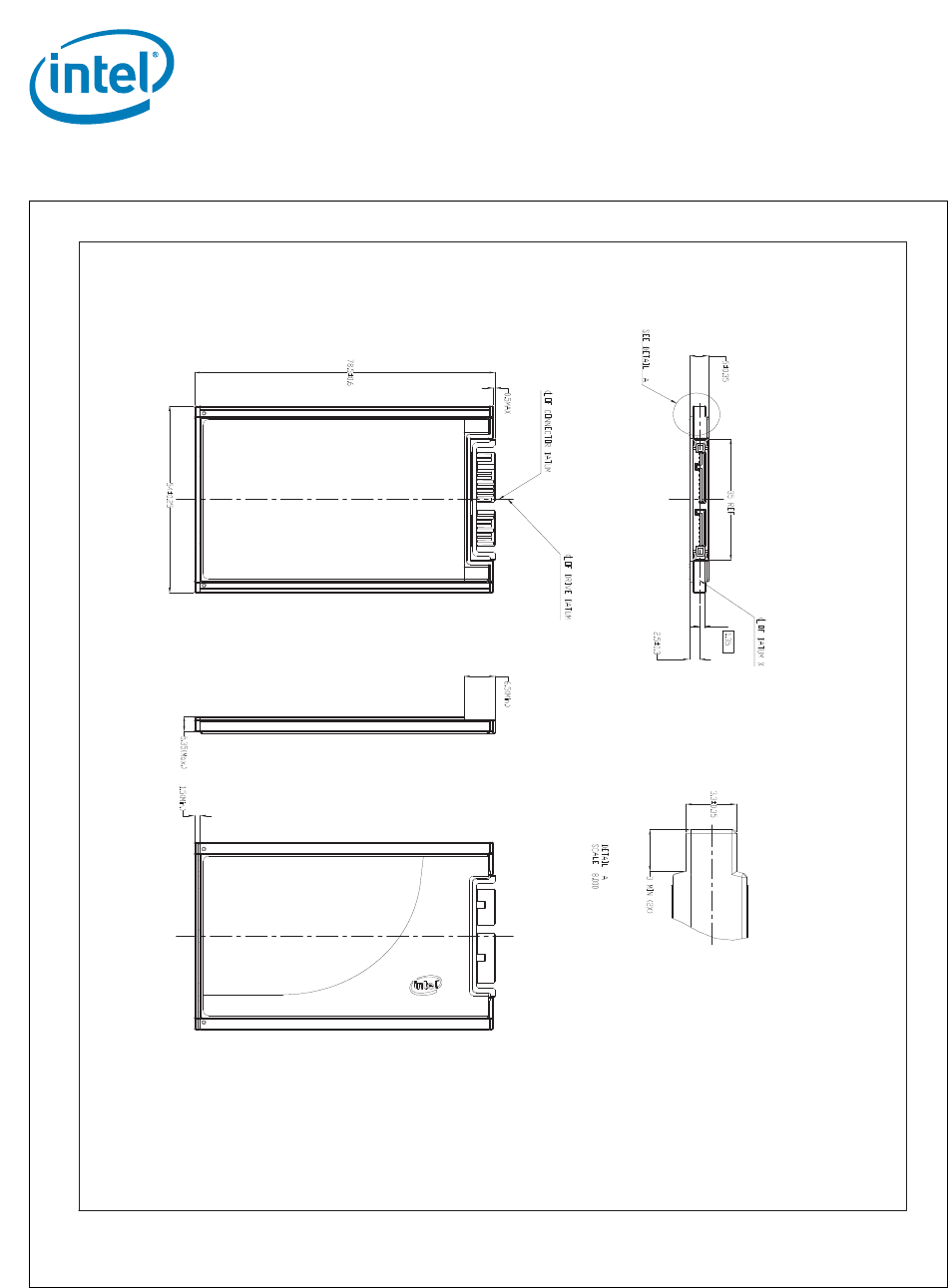

Figure 2. Dimensions for Intel X18-M SATA SSD 1.8” 5 mm Form Factor
