CHAPTER 5

Intel Express 460T Standalone Switch Users Guide

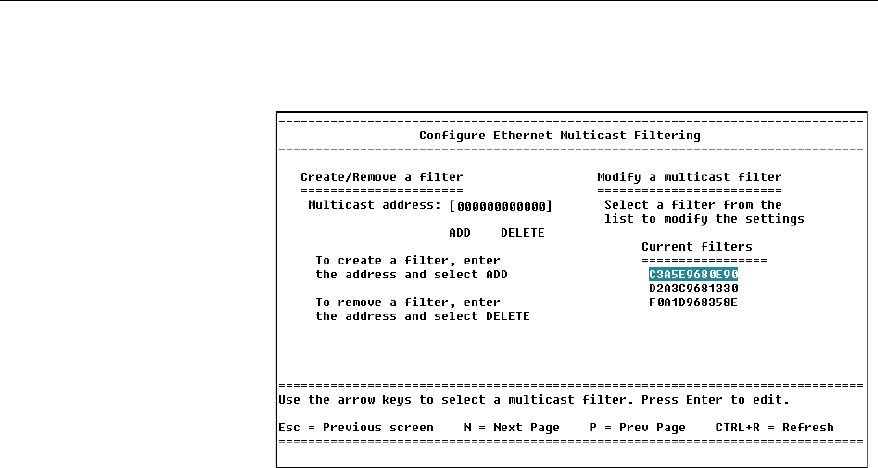

Configure Ethernet Multicast Filtering

Description

Use Ethernet multicast filters to define which ports can receive multicast

traffic from a specific multicast MAC address. This is similar to IGMP

snooping, except you define everything manually.

VLAN/VLAN ID: If VLANs are active on the switch you can set Ethernet

Multicast filtering for each VLAN. For port-based VLANs, press the

z to select the name of VLAN. For tag-based VLANs, type the

VLAN ID for the specified multicast address.

Multicast address: Type the MAC address you want to apply a filter to.

ADD: Activates the filter and adds the address to the list.

DELETE: Removes the filter for the specified address.

To add or delete a multicast filter

1 In the Multicast address field, type a multicast address.

2 If the switch is running tag-based or port-based VLANs, select a VLAN

to locate the filter.

3 Select ADD using the arrow keys and press e.

4 To remove a filter, type in the MAC address in the Multicast field, select

DELETE, and press e.

LOCATION

Main Menu

Configure Device

Forwarding and Filtering

Ethernet Multicast Filtering

NOTE

If tag-based (IEEE 802.1Q) or port-

based VLANs are currently run-

ning, you must assign each

multicast filter to a specific VLAN.
