Intel Desktop Board D525MW Product Guide

Installing a Wireless LAN Card in the PCI

Express Mini Card Slot

A wireless LAN card can be installed in the Desktop Board’s PCI Express Mini Card slot.

To install a Full-Mini Card wireless LAN card, see Figure 9 and follow these steps:

1. Observe the precautions in "Before You Begin" on page

23.

2. Insert the wireless LAN card into the PCI

Express Mini Card connector (Figure 9, A)

at a sligh

tly upward angle.

3. Align the card’s mounting holes over the board’s steel mounting posts (Figure 9, B)

and attach the card

with the s

upplied screws.

4. Attach your system’s antenna wires to the connectors (Figure 9, C) on the wireless

LAN card

shown.

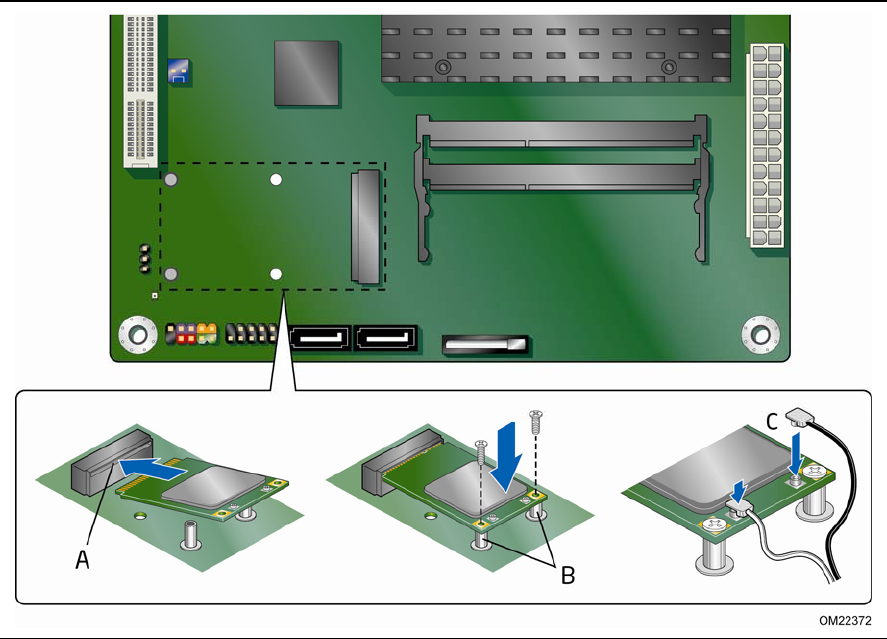

Figure 9. Installing a Full-Mini Card Wireless LAN Card
