Installing and Replacing Desktop Board Components

Installing and Removing a Processor

Instructions on how to install the processor on the Desktop Board are given below.

Installing a Processor

CAUTION

Before installing or removing a processor, make sure the AC power has been removed

by unplugging the power cord from the computer; the standby power LED should not

be lit (see Figure 4 on page 22). Failure to do so could damage the processor and the

board.

o install a processor, follow these instructions:

1. Observe the precautions in "Before You Begin" on page 27.

2. Open the so

cket lever by pushing the lever down and away from the socket

(Figure 9, A and B).

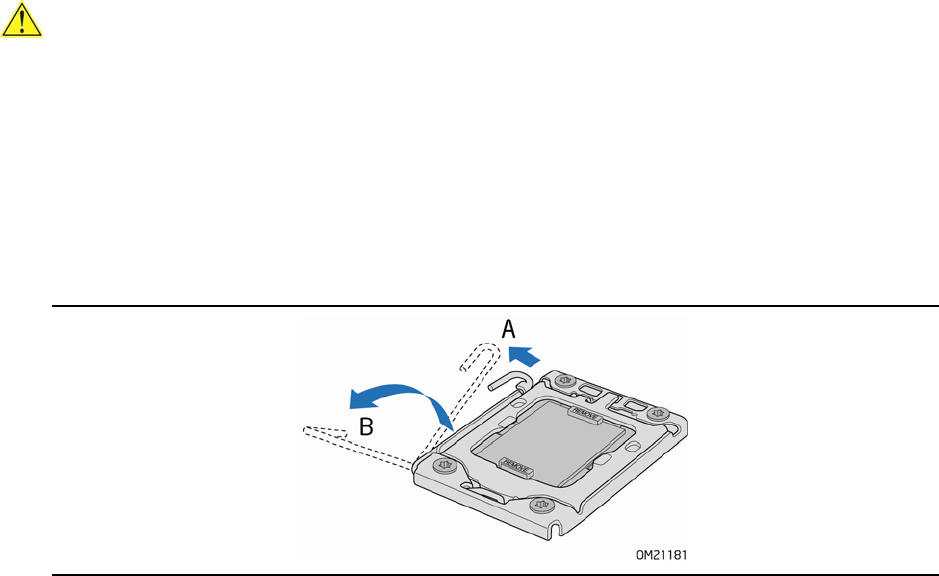

Figure 9. Lift the Socket Lever
