Intel Desktop Board D915PBL Technical Product Specification

2.10 Mechanical Considerations

2.10.1 D915PBL Board Form Factor

The D915PBL board is designed to fit into an ATX-form-factor chassis. Figure 21 illustrates the

mechanical form factor of the board. Dimensions are given in inches [millimeters]. The outer

dimensions are 12.00 inches by 9.60 inches [304.80 millimeters by 243.84 millimeters]. Location

of the I/O connectors and mounting holes are in compliance with the ATX specification.

OM17062

6.100

[

154.94]

3.100

[78.74]

5.550

[140.97]

6.450

[163.83]

6.500

[165.10]

6.200

[157.48]

5.200

[

132.08]

2.850

[72.39]

.800

[45.72]

0.00

2.600

[66.04]

4.900

[124.46]

0.00

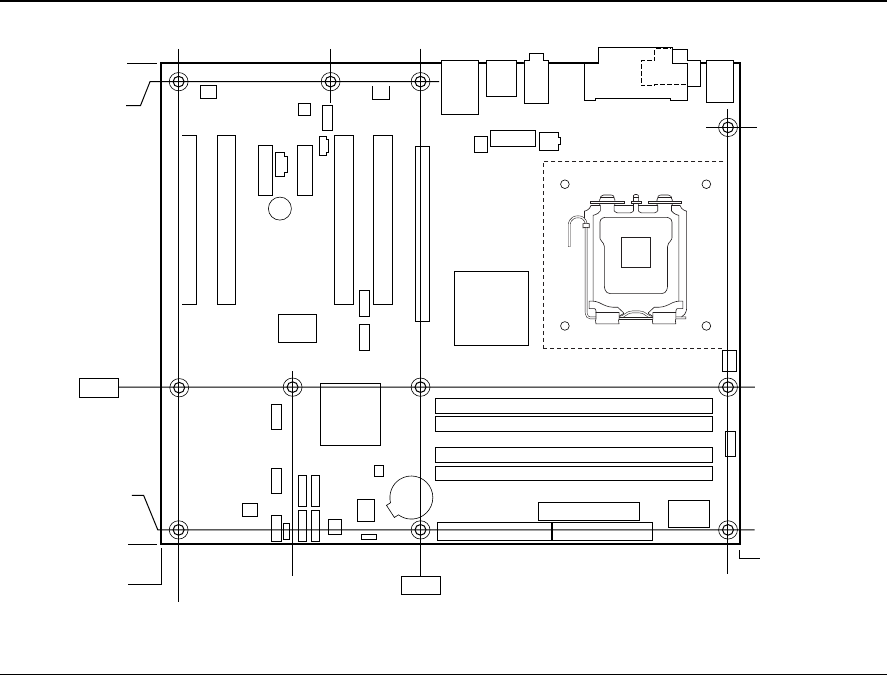

Figure 21. D915PBL Board Dimensions
