Package Mechanical Specifications

36 Intel® Xeon® Processor 3500 Series Datasheet Volume 1

3.9 Processor Land Coordinates

Figure 3-5 shows the top view of the processor land coordinates. The coordinates are

referred to throughout the document to identify processor lands.

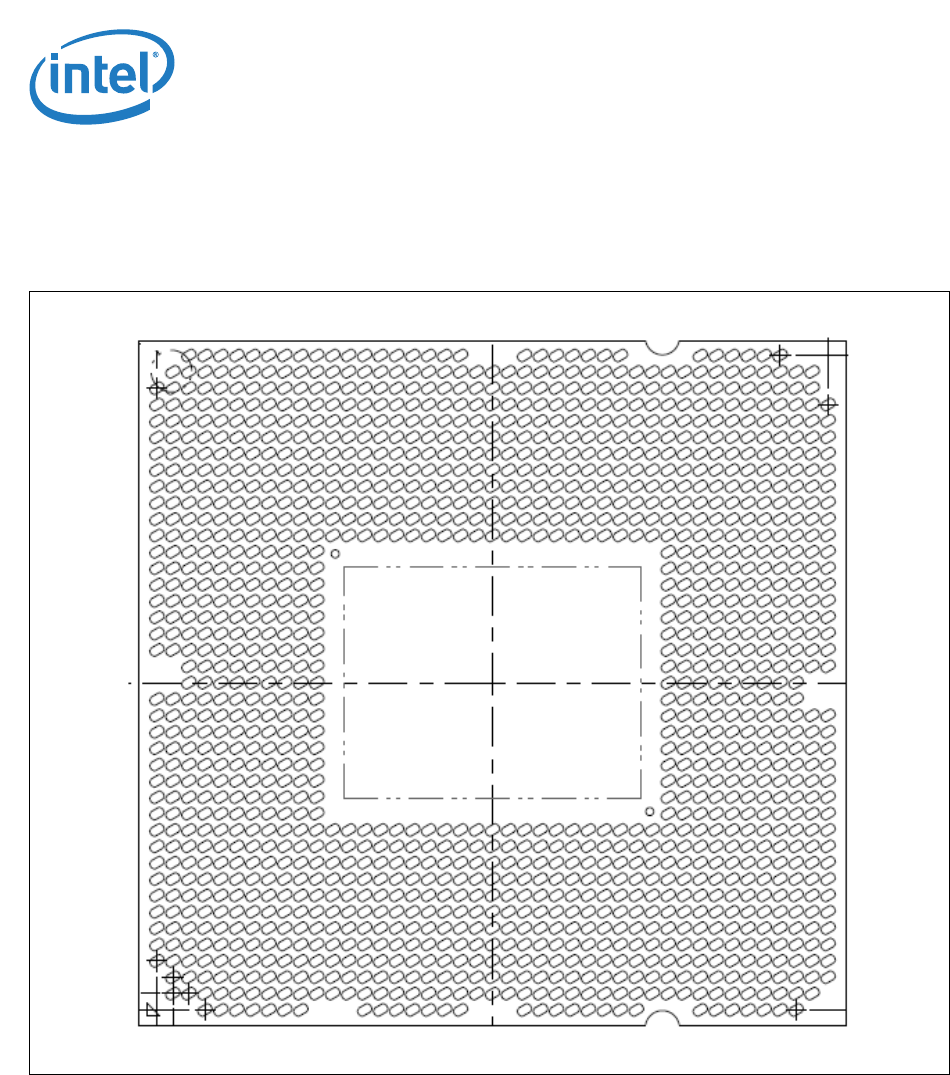

Figure 3-5. Processor Land Coordinates and Quadrants (Bottom View)
