Server Chassis SR2300

Tape Drive Cable Kit

Kit Contents

The kit contains the following:

• SCSI cable with integral terminator

• Power cable

What you must purchase separately:

• Intel

Server Chassis SR2300

• SCSI tape drive

Installing Your Tape Drive

1. Observe all the safety precautions in your chassis’ manual.

2. Remove the tape drive from its packaging. Set any jumpers or switches according to

the manufacturer’s instructions.

3. Remove the chassis cover.

4. Disconnect the flex circuit cable from the backplane.

5. Remove the processor duct.

6. Disconnect and remove the fan module.

7. Press the blue tab toward the hot swap drives to release the tape drive carrier.

8. Remove the tape drive carrier from the chassis.

OM1465

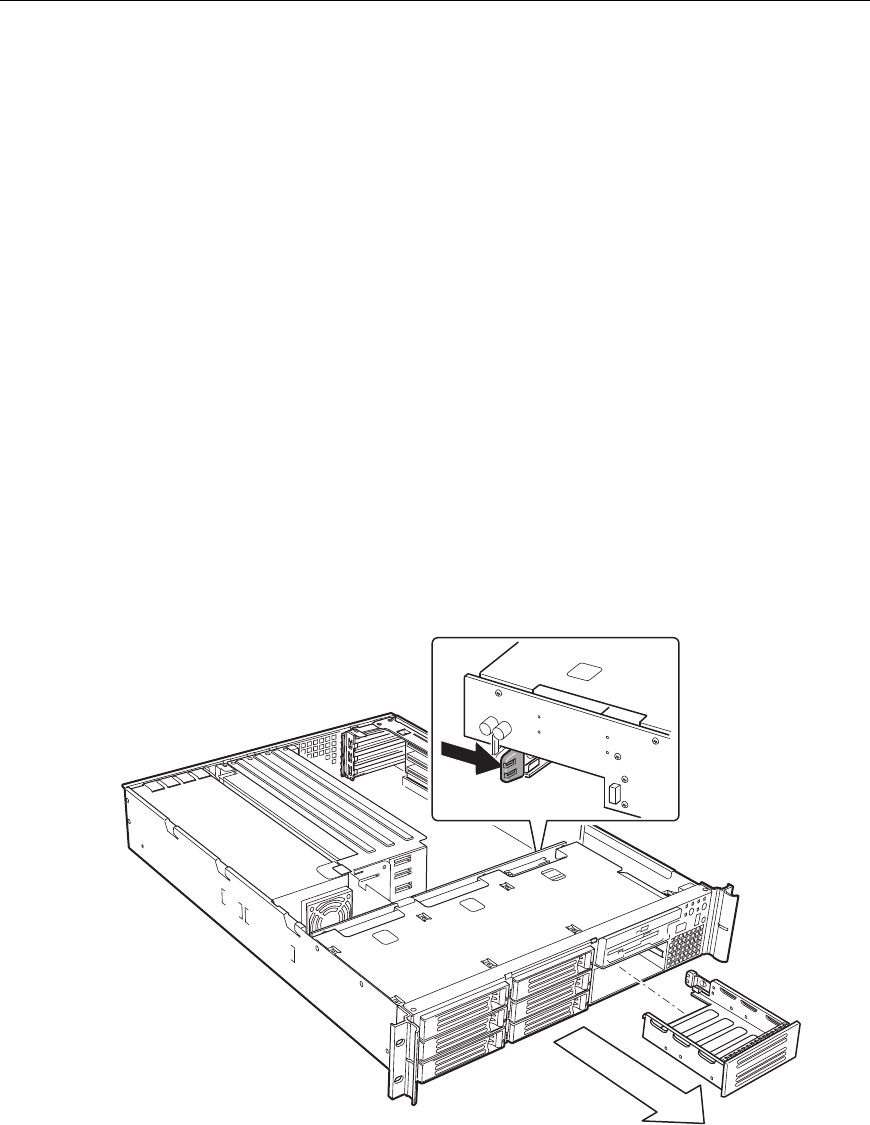

Figure 1. Removing the Tape Drive Carrier

1 2 3 4

Seite 2

2 9. Remove the plastic cover from the tape drive carrier. OM14658 Figure 2. Removing the Plastic Cover 10. Position the tape drive in the carrier

Seite 3

3 11. Connect the power cable to the drive. 12. Connect the SCSI cable to the drive. Note that the SCSI terminator must on the end of the SCSI cabl

Seite 4

4 15. Connect the power cable (A) to the connector on the backplane. 16. Connect the SCSI cable (B) to the server board. You may also connect it to
