Intel

Solid-State Drive DC P3600 Series

Product Specification October 2014

18 330569-004US

3 Mechanical Information

Figures 3-1 and 3-2 show the physical package information for the Intel SSD DC P3600 Series in the 2.5-inch form

factors. All dimensions are in millimeters.

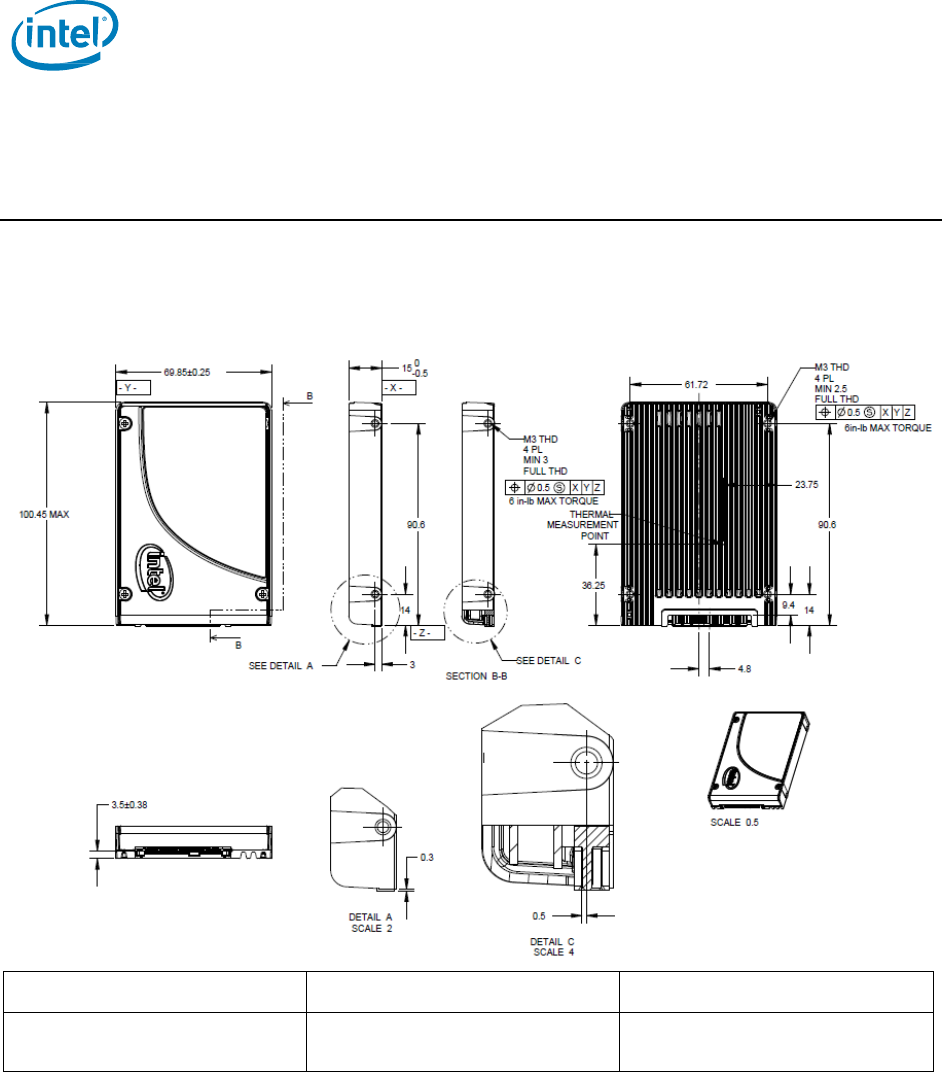

Figure 3-1 Intel SSD DC P3600 Series SFF Dimensions

X – Length

Y – Width

Z – Height

100.45 Max

69.85 +/- 0.25

15.0 +0/-0.5

Note: Length does not include 0.3 connector protrusion
