RAID Smart Battery Installation Guide

Attach the Connecting Cable to the Server System

Follow the set of instructions below that is appropriate for your server.

Note: The connector will only fit in one position.

Intel

Server Platforms SR4850HW4 and SR6850HW4 (SCSI ROMB)

1. Route the cable through the cable holder as shown by Letter “A” of Figure 5.

2. Connect the cable to the main board, as shown below.

TP01409

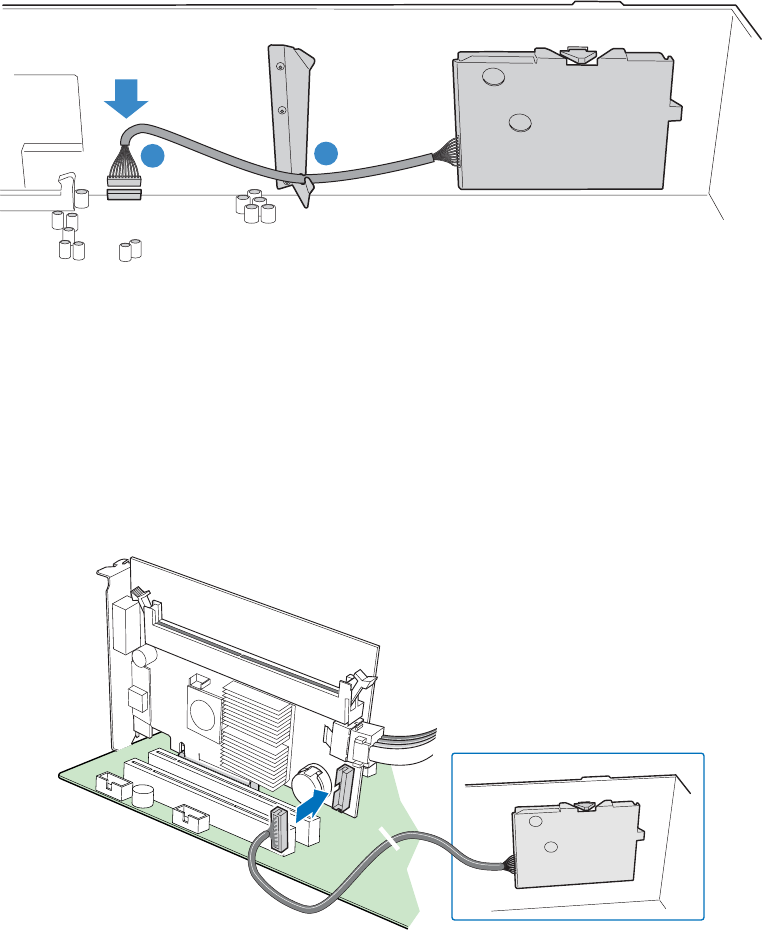

Figure 5. Routing and Connecting the Cable inside the Chassis

Intel

Server Chassis SC5400, Intel

Entry Server Chassis SC5299-E, Intel

Server

Platforms SR4850HW4/M and SR6850HW4/M

Connect the cable to the SAS ROMB board as shown below.

Note: RAM is required in the DIMM socket.

AF000254

Figure 6. Routing and Connecting the Cable inside the Chassis
