LXD386 — Evaluation Board for Quad T1/E1 Applications

12 Developer Manual

3.11 JTAG Boundary Scan Port

The eight pin connector JP2 shown in Figure 4 provides access to the IEEE 1149.1 compliant

JTAG boundary scan port for board testing purposes.

3.12 Framer/ASIC Connection

Ten pin connectors provide access to the digital signals necessary for interfacing with the back-end

Framer/Mapper or ASIC. Figure 5 represents one of the four connectors with the factory jumper

connecting RCLK to TCLK.

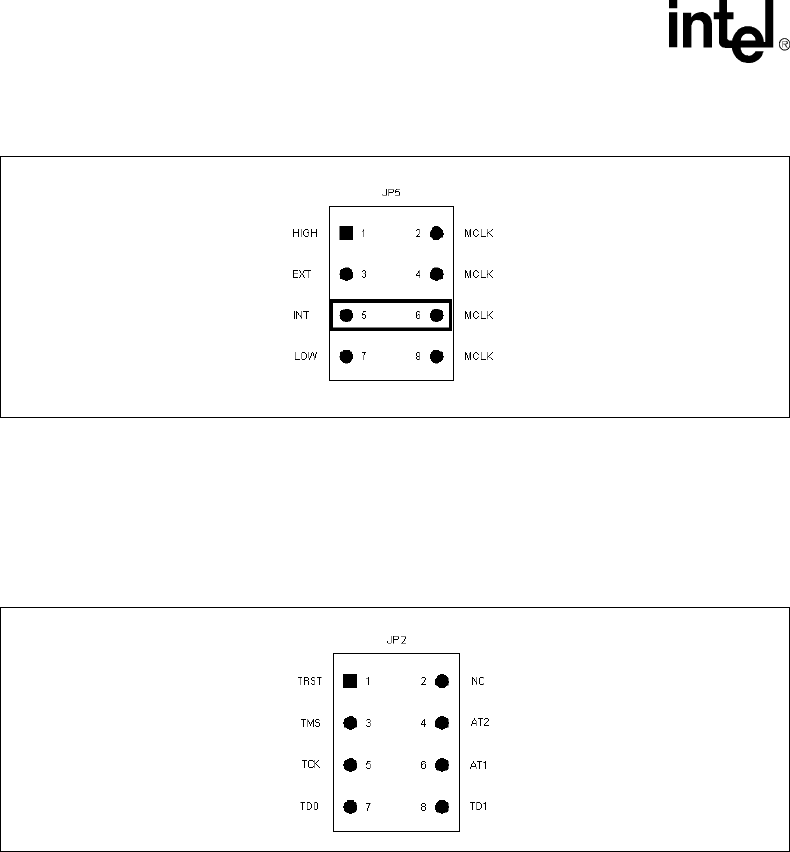

Figure 3. Jumper Block JP5

Figure 4. Jumper Block JP2

1 2 ... 7 8 9 10 11 12 13 14 15 16 17 ... 25 26
