Installing and Replacing Desktop Board Components

Installing DIMMs

To make sure you have the correct DIMM, place it on the illustration of the DDR3

DIMM in Figure 17. All the notches should match with the DDR3 DIMM.

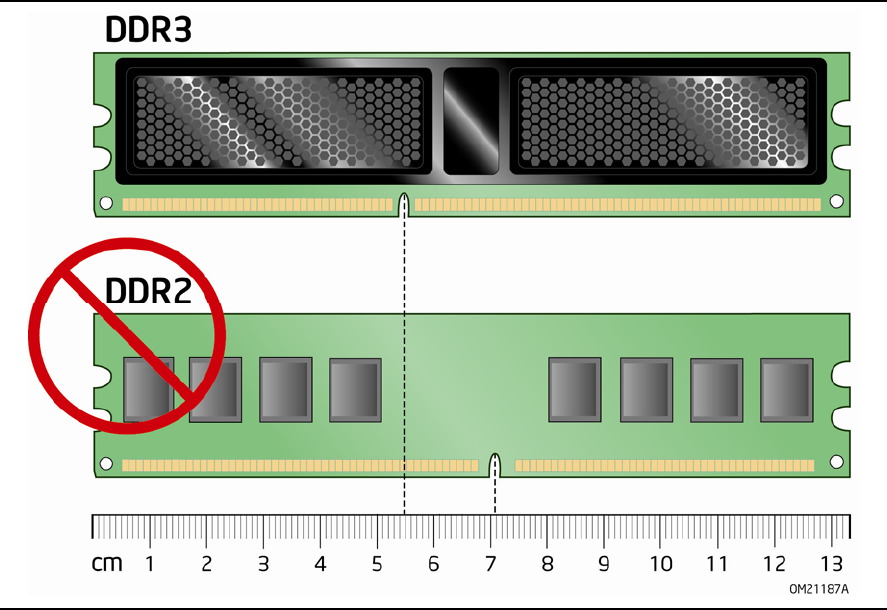

Figure 17. Use DDR3 DIMMs
