Intel Desktop Board DX58SO2 Product Guide

China RoHS

Intel Desktop Board DX58SO2 is a China RoHS-compliant product.

The China Ministry of Information Industry (MII) stipulates that a material Self

Declaration Table (SDT) must be included in a product’s user documentation. The SDT

for Intel Desktop Board DX58SO2 is shown in Figure 31.

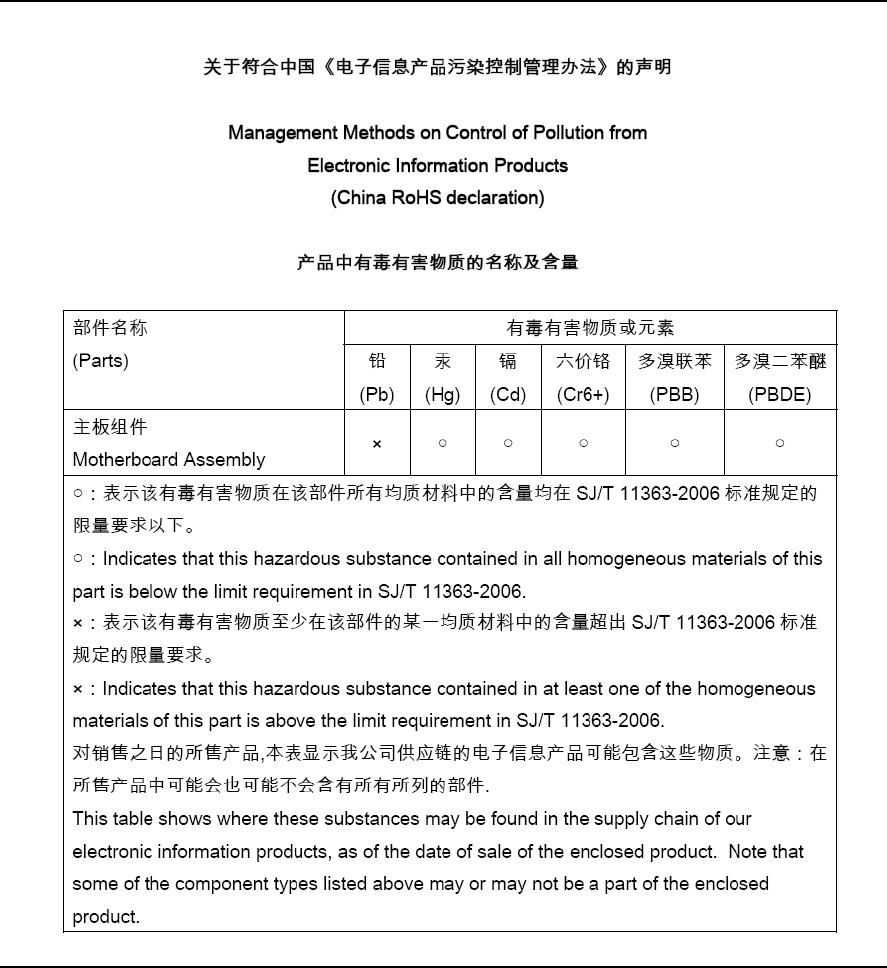

Figure 31. Intel Desktop Board DX58SO2 China RoHS Material

Self Declaration Table
