BIOS

Page 4-7

4-4 Integrated Peripherals

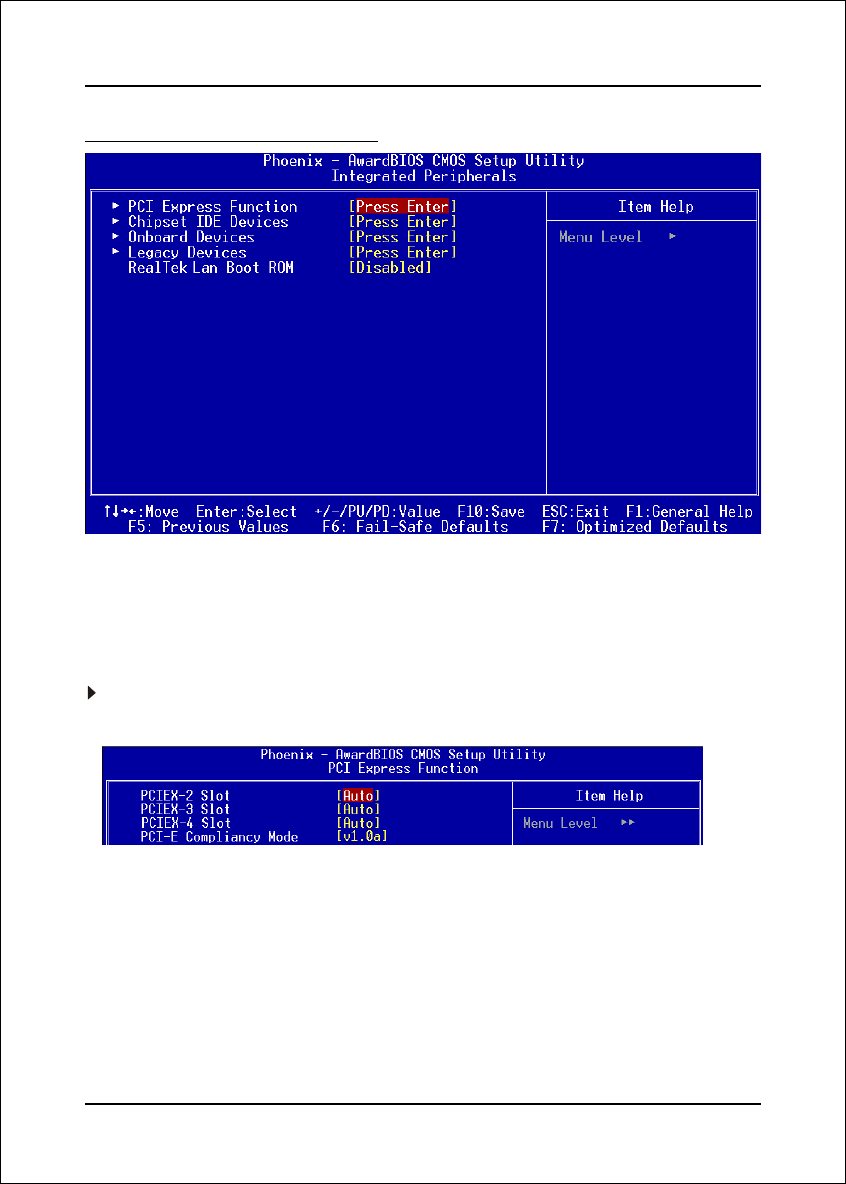

Figure 5: Integrated Peripherals

Realtek Lan Boot ROM

Enable/disable the onboard Realtek Lan Boot ROM for booting from LAN.

Options: Enabled, Disabled.

PCI Express Function

Scroll to PCI Express Function and press <Enter>. The following screen appears:

PCIEX-2 Slot / PCIEX-3 Slot / PCIEX-4 Slot

PCI-E device disabled function.

Options: Auto, Enabled, Disabled.

PCI-E Compliancy Mode

Allows you to select the PCI-E compliancy mode.

Options: V1.0a, V1.0.
