Server System SR1500AL User’s Guide 71

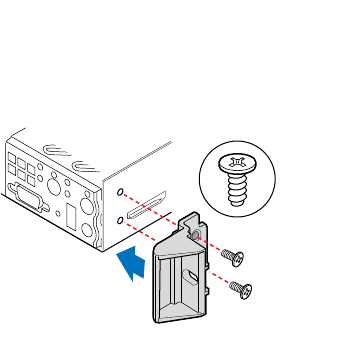

Figure 61. I Installing the Rack Handle

6. Install the server system cover. For instructions, see “Installing the System Cover”.

7. Install the front bezel. For instructions, see “Installing the Front Bezel”.

8. Plug all peripheral devices and the AC power cable(s) into the server.

Removing the Rack Handles

1. Observe the safety and ESD precautions at the beginning of this book. See “Safety

Information”.

2. Power down the server and unplug all peripheral devices and the AC power

cable(s).

3. Remove the front bezel if it is installed. For instructions, see “Removing the Front

Bezel”.

4. Remove the server system cover. For instructions, see “Removing the System

Cover”.

5. Remove the two screws holding the rack handle in place, and remove the rack

handle from the server system as shown in the figure below.

AF000377
