Intel LE80537GF0414M Datenblatt PDF herunterladen (Seite 12)

Identification Information

12 Specification Update

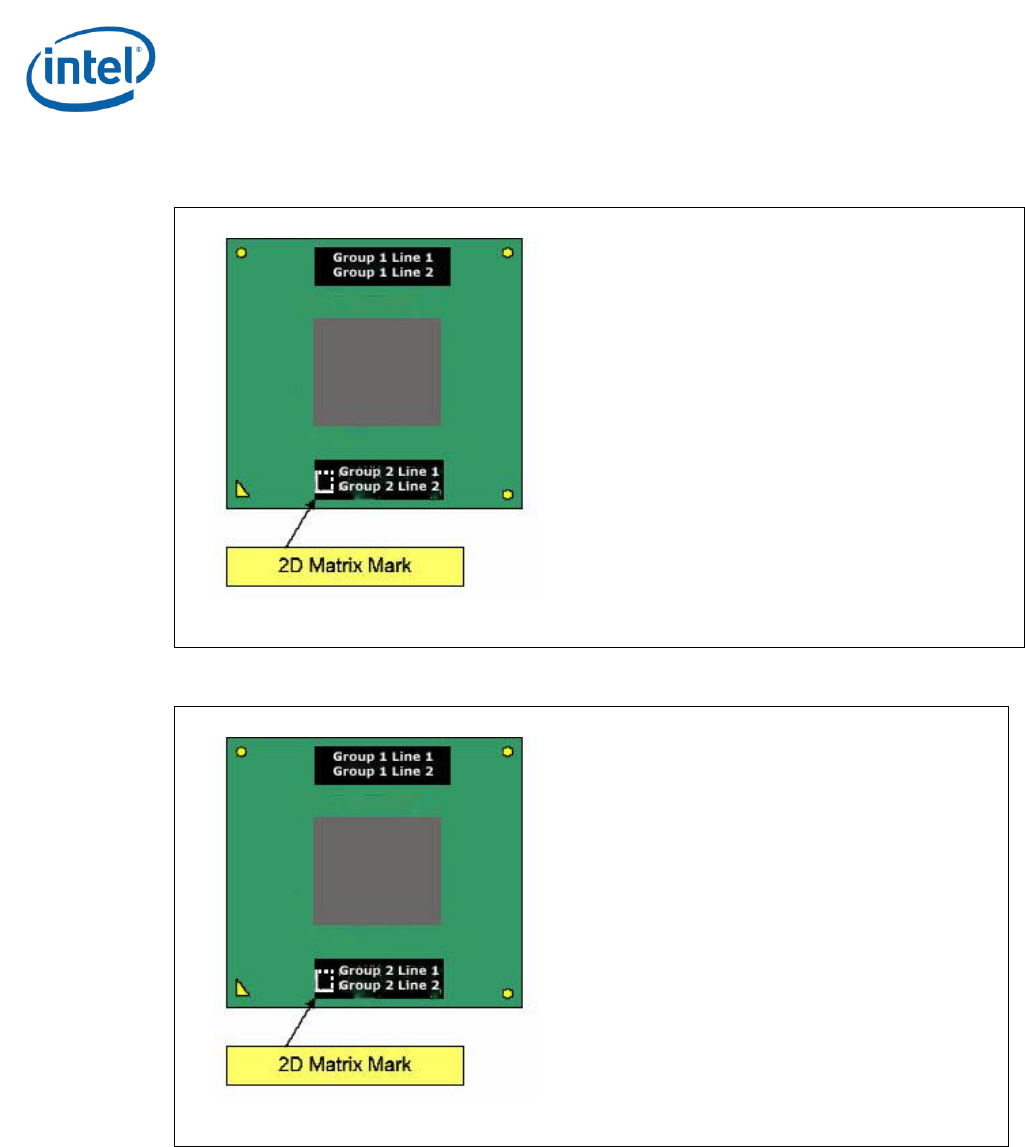

Figure 2. Intel

Core™2 Duo Mobile Processor (Micro-FCPGA/FCBGA) Production

Markings

Figure 3. Intel

Celeron

Processor 500 Series (Micro-FCPGA) Markings

SAMPLE MARK EXAMPLE:

Group 1 Line 1: Unit Identifier ---

Group 1 Line 2: FPO S-Spec#

Group 2 Line 1: INTEL (m) © ‟05

Group 2 Line 2: ATPO Serial Number

For Pb-Free:

Group 2 Line 1: INTEL (m) © ‟05 (e1)

Production MARK EXAMPLE:

Group 1 Line 1: Unit Identifier* Processor #

Group 1 Line 2: FPO SSPEC#

Group 2 Line 1: Frequency/L2 Cache/FSB Speed

For Pb-Free:

* Intel Core 2 Duo mobile processors have a unit

identifier of LF80537 for Micro-FCPGA parts and

LE80537 for Micro-FCBGA parts.
